Elitech EMTU Series Hydraulic Cylindrical Grinding Machine is engineered for high-precision external OD grinding of cylindrical components. Powered by a reliable hydraulic system, it ensures consistent performance, smooth operation and superior surface finish — making it the ideal choice for tool room grinding and small batch precision applications.
The EMTU series features a universal workhead suitable for both live and dead center grinding with variable speed control. Available in grinding lengths from 450mm to 1500mm, it serves precision grinding needs across tool-room, pump and general engineering industries.
The EMTU series hydraulic cylindrical grinding machine is widely used across:

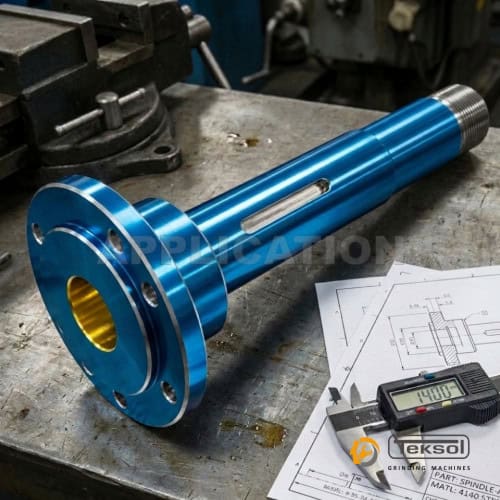

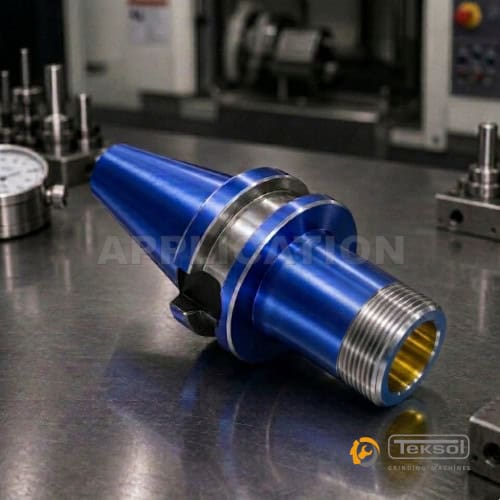

The Elitech EMTU Series Hydraulic Cylindrical Grinding Machine is widely used for precision external OD grinding of shafts, rollers, bearing components, spindles and general engineering parts requiring fine surface finish and dimensional accuracy. The blue highlighted portion in the below images indicates the grinding area of the component. Below are a few example applications commonly ground on EMTU series machines where the blue highlighted area indicates the grinding zone of the component..
| Specifications | unit | EMTU 450/600/800 | EMTU 1000/1250/1500 |
|---|---|---|---|
| Center Height | MM | 150 (200) | 150 (200) |
| Swing Dia. | MM | 290 (390) | 290 (390) |
| Max. Grinding Length | MM | 450 / 600 / 800 | 1000 / 1250 / 1500 |
| Max. Weight Between Centers | KG | 60 | 90 |
| Grinding Wheel Size (dia.×width) | MM | 350×40 (400×40) | 400×40 (500×40/50) |
| Work Head Spindle nose (inner) | MT | 4 | 4 |
| Tail Stoke Spindle Nose (inner) | MT | 3 | 4 |
| Grinding Wheel Power | KW | 2.2 (3.7) | 3.7 (5.5) |
WORK HOLDING
– 4 Jaw Independent Chuck — 160mm / 200mm
– 3 Jaw Self Centering Chuck — 160mm / 200mm
– Hardened Work Driver Set
PRECISION MEASUREMENT
– Swing type In-Process Gauging System
– Comparator Stand for OD Checking
INTERNAL GRINDING ATTACHMENT
– Internal Grinding Attachment — Spindle Ø60mm, 18000RPM
– Internal Grinding Attachment — Spindle Ø80mm, 14000RPM
DRESSING SYSTEMS
– Radius Dressing Attachment
– Side and Angle Dressing Device
WORK SUPPORT
– 2 Point Steady Rest
– 3 Point Steady Rest
– Work Rest for Long Shaft Grinding
GRINDING SPINDLE HEAD
– Heavy Duty Wheel Head
– VFD Wheel Spindle System
– Additional Wheel Flange
COOLANT AND FILTRATION
– Magnetic Coolant Separator
– Paper Band Filtration Unit
ELECTRICAL AND UTILITY
– Servo Voltage Stabilizer
– Machine Working Lamp
MACHINE CONFIGURATION
– Larger Centre Height Configuration
Other
– Wheel Balancing Stand
The Elitech EMTU series hydraulic cylindrical grinding machine is used for precision external OD grinding of cylindrical components including automotive shafts, bearing components, rollers, spindles and general engineering parts in both tool room and production environments.
The EMTU series is available in six standard models — EMTU 450, 600, 800 for shorter components and EMTU 1000, 1250, 1500 for longer shafts up to 1500mm grinding length. Maximum component weight is 60kg for smaller models and 90kg for larger models.
The EMTU series workhead spindle speed ranges from 50 to 450 RPM with variable speed control — suitable for grinding a wide variety of component materials and sizes with optimal surface finish.
Yes. An optional internal grinding attachment is available for the EMTU series with Ø60mm or Ø80mm spindle operating at 18000 RPM — enabling both external OD and internal bore grinding on the same machine.
A hydraulic cylindrical grinding machine uses a hydraulic system for table movement and is manually controlled — ideal for tool room and small batch production at lower cost. A CNC cylindrical grinding machine uses servo motors with CNC controller for fully automatic, repeatable grinding cycles — ideal for medium to high volume production requiring consistent accuracy.
Yes. The Elitech EMTU series hydraulic cylindrical grinding machine is specifically designed for tool room applications requiring high precision. Its rigid construction, white metal bush wheel spindle and fine feed control make it ideal for precision grinding of tools, gauges, dies and fixtures.
The EMTU series is available with optional internal grinding attachment, in-process gauging system, hydraulic rapid approach and larger centre height configuration for wider swing diameter components.
Yes. Elitech Machine Tools manufactures and exports the EMTU series hydraulic cylindrical grinding machine worldwide with service network across India including Rajkot, Ahmedabad, Pune, Mumbai, Delhi, Bengaluru and export internationally in Singapore, Turkey, Africa and UAE. Contact sales@elitech.in for enquiries.
