CNC Internal Grinding Machine

Series: i GRIND 200

Elitech i GRIND 200 CNC Internal Grinding Machine is a high-performance CNC internal grinding machine built on a rigid rectangular cast body with cross roller guideways on both X and Z axes — ensuring high rigidity, low friction and ultra-smooth movement for long-term accuracy. Equipped with Siemens 808D Advanced or Fanuc 0i-TF Plus CNC controller, it is fully programmable for high-speed, high-cut internal grinding cycles.

Widely adopted in bearing and auto ancillary industries, the i GRIND 200 is optimized for mass production of high-precision bores up to 200mm OD clamping and 80mm grinding length. An optional twin spindle configuration enables simultaneous face grinding referenced to ID grinding — eliminating secondary operations.

Why Choose Elitech i GRIND 200 CNC Internal Grinding Machine?

Rectangular Rigid Machine Base — Precision-machined high-strength cast body free from vibration even during heavy depth of cut
Cross Roller Guideways (X & Z Axis) — Superior load-bearing capacity and minimal stick-slip effect for motion accuracy and repeatability
High-Cut Capability — Robust spindle and axis design enable aggressive grinding cycles while maintaining fine tolerances
Siemens 808D Adv. / Fanuc 0i-TF Plus — Advanced CNC for high-speed, high-precision automated bore grinding cycles
Twin Spindle Option — Optional face grinding spindle for simultaneous ID and face grinding in single setup
Fully Enclosed Machine Guarding — Complete operator and coolant splash protection
Mass Production Optimized — Ideal for repetitive high-volume bore grinding with minimal downtime
Made in India — Manufactured in Surendranagar, Gujarat by Elitech Machine Tools since 2002

Industries Served

The i GRIND 200 CNC internal grinding machine serves high-volume bore grinding needs across:

Bearing Industry — Mass production bore grinding of bearing inner races, outer races and rings
Auto Ancillary Industry — High-volume bore grinding of automotive transmission components, gear bores and bushings
Hydraulic Industry — Precision cylinder bores, valve bores and hydraulic component grinding
Pump & Motor Industry — Motor housing bores, pump body grinding and rotor bore applications
Machine Tool Industry — Spindle bores, tool holder bores and precision fixture grinding
General Engineering — High-volume precision bore grinding applications

Applications

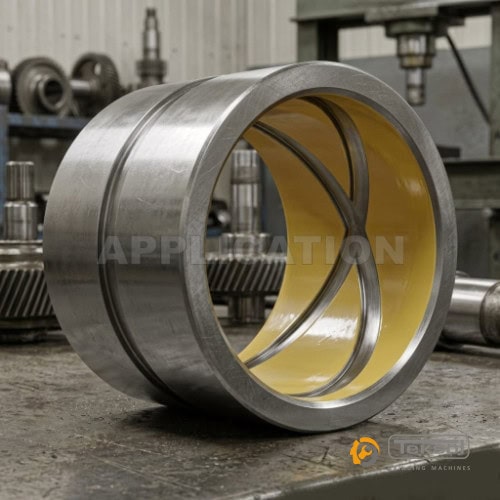

In the below application images, the grinding zone is highlighted with yellow colour. The Elitech CNC Internal Grinding Machine is designed for high-precision internal bore grinding of bearing races, bushes, sleeves and complex precision components. Equipped with advanced CNC control, high-speed internal grinding spindle and programmable grinding cycles, it delivers excellent roundness, surface finish and dimensional accuracy for medium to high production applications.

Hardened Steel Bush

Synchronous Ring

Transmission Gear

Spherical Roller Bearing

Industries & Components Served

Bearing Inner Races
Bushes & Sleeves
Hydraulic Components
Fuel Injection Components
Automotive Components
Pump Components
Valve Bodies
Tooling Components
Precision Engineering Parts
General Engineering Components

Specification

Specifications	units	i GRIND 200
Max. O.D. Clamping	MM	200
Max. Component / Grinding Length	MM	80 (100)
Max. Weight on Work Spindle	KG	60
Max. X-Axis Stroke	MM	340
Max. Z-Axis Stroke	MM	350
Grinding Spindle Head Bore	MM	120 (150)
Grinding Spindle Power	KW	3.7
CNC Controller	-	Siemens / Fanuc

Features

Rectangular rigid machine base — precision-machined cast body for vibration-free operation
Cross roller guideways on X and Z axis for superior rigidity and motion accuracy
Siemens 808D Advanced / Fanuc 0i-TF Plus CNC controller
High-cut capability — aggressive grinding cycles with fine tolerances
Cartridge type work spindle for precise component holding
High precision internal grinding spindle — up to 14000 RPM
Cross Roller guide ways for both axes
Graded casting as per IS:210 for anti-vibration stability
Fully enclosed machine guarding for operator safety
Designed for mass production with minimal downtime

Optional

CNC CONTROLLER (OPTIONS)
– Siemens 808D Advanced (Standard)
– Fanuc 0i-TF Plus (Optional)

TWIN SPINDLE
– Twin Spindle for simultaneous face grinding referenced to ID

WORK HOLDING
– Close Center Power Chuck — 160mm / 200mm
– Hydraulic Diaphragm Chuck — 20-90mm / 50-120mm
– A2-4 Work Spindle Assembly
– 3 Jaw True Chuck — 160mm / 200mm
– Su-Magnet Chuck — 125mm / 200mm
– Hydraulic Operated Collet Chuck

GRINDING SPINDLE OPTIONS
– Internal Grinding Spindle Ø60mm
– Internal Grinding Spindle Ø80mm
– Internal Grinding Spindle Ø100mm
– Internal Grinding Spindle Ø120mm
– High Frequency Motorized Spindle

PRECISION MEASUREMENT
– In-Process Gauging System
– Linear Glass Scale (Fanuc)
– Face Detection Touch Probe

DRESSING SYSTEMS
– Servo Radius Dressing (up to R13)
– Roll Dressing System

AUTOMATION
– Gantry-Type Auto Loading System
– Robotic Pick and Place System
– Auto Door Open/Close System

COOLANT AND FILTRATION
– Magnetic Coolant Separator
– Paper Band Filtration Unit
– Mist Collector

ELECTRICAL
– VFD Grinding Wheel Spindle System
– Servo Voltage Stabilizer

Frequently Asked Questions

What is the Elitech i GRIND 200 CNC internal grinding machine?

The Elitech i GRIND 200 is a high-performance CNC internal grinding machine built on a rigid rectangular cast body with cross roller guideways for precision bore grinding. Equipped with Siemens 808D Advanced or Fanuc 0i-TF Plus CNC, it is optimized for mass production of high-precision bores in bearing and auto ancillary industries.

What is the maximum OD clamping on i GRIND 200?

The Elitech i GRIND 200 CNC internal grinding machine supports a maximum OD clamping of 200mm with maximum grinding length of 80mm (100mm optional) — suitable for a wide range of bore grinding applications in bearings, gears and automotive components.

What CNC controller is used in i GRIND 200?

The i GRIND 200 is available with Siemens 808D Advanced or Fanuc 0i-TF Plus CNC controllers — both offering high-speed, high-precision programmable grinding cycles for automated bore grinding production.

What are cross roller guideways and why are they important?

Cross roller guideways on both X and Z axes of the i GRIND 200 provide superior load-bearing capacity, minimal stick-slip effect and ultra-smooth movement — enhancing motion accuracy, repeatability and long-term precision in high-volume bore grinding production.

Is face grinding possible on i GRIND 200?

Yes. An optional twin spindle configuration is available for the i GRIND 200 — enabling simultaneous face grinding referenced to ID grinding in a single setup, eliminating secondary operations and improving productivity.

What industries use the i GRIND 200 CNC internal grinding machine?

The i GRIND 200 is widely used in bearing industry (inner race bore grinding), auto ancillary industry (gear bores, bushings), hydraulic industry (cylinder bores), pump and motor industry (housing and bushing bores) for high-volume precision bore grinding.

What is the grinding spindle speed on i GRIND 200?

The i GRIND 200 features a standard 14000 RPM grinding spindle with 3.7 KW motor power and 120mm head bore size — suitable for medium to large bore grinding applications. High frequency motorized spindle options are available for higher speed requirements.

Does Elitech export i GRIND 200 CNC internal grinding machines?

Yes. Elitech Machine Tools manufactures and exports the i GRIND 200 CNC internal grinding machine worldwide with across India. Contact sales@elitech.in for export enquiries.
